PU Round Belt
Items NO. | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 85 A | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 85A | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 85A | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 85A | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85A | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85A | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85A | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85A | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85A | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85A | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85A | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85A | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85A | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85A | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85A | 30 |

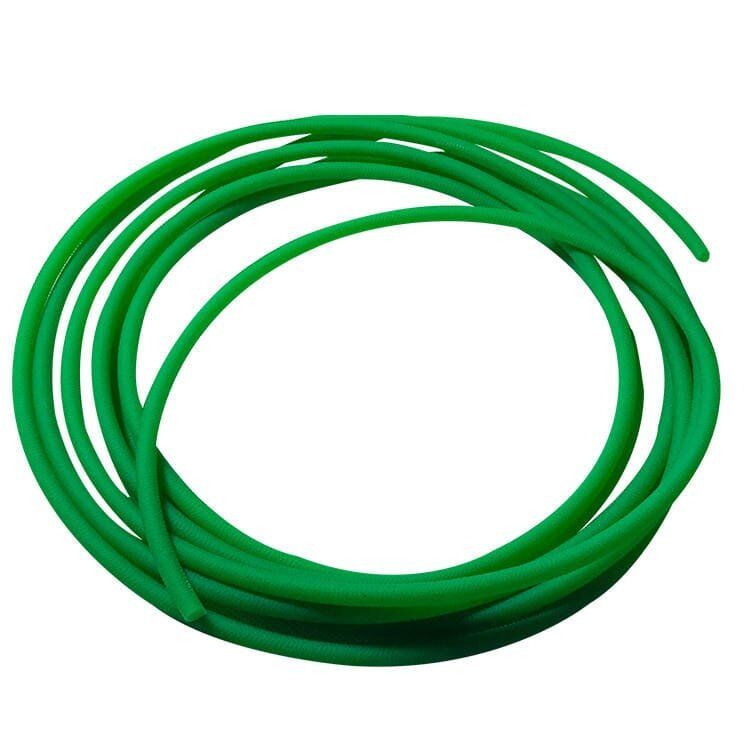

PU round belts
We have a complete range of polyurethane round belts for conveying and power transmission applications. PU round belts, available in open lengths, are extruded and homogeneous round profiles that can be welded for use as high-quality power transmission and conveying elements.

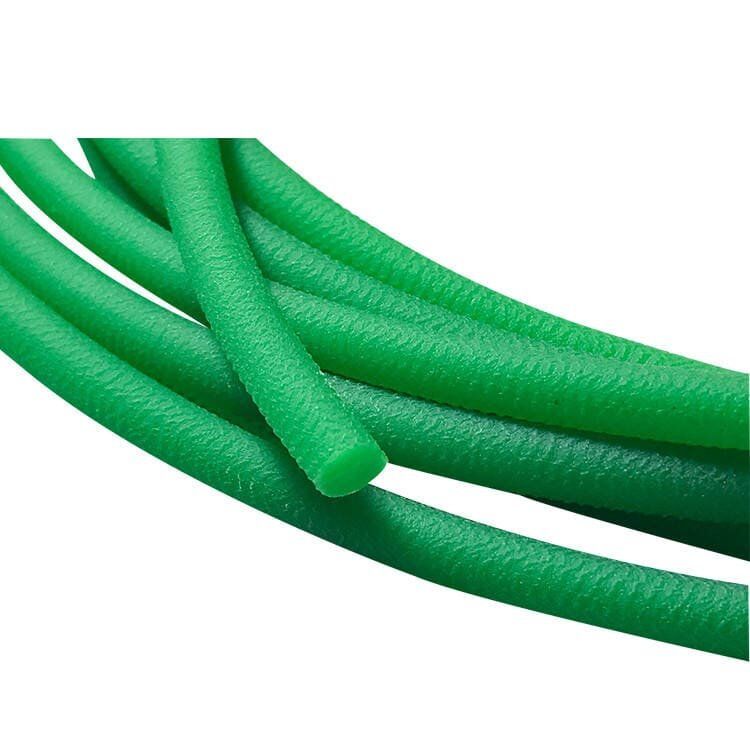

Our stock mainly comprises solid profiles with a smooth or slightly roughened surface and hollow profiles for nipple connections… Although we generally produce in open lengths, we can also produce all belts according to your specifications. Our round belts convey a wide range of products such as foodstuffs, glass, roof tiles, PC boards, and many more. The standard range of round belts is rounded off with aramid, polyester, or glass-fiber reinforcements.
Products introduction:
Urethane round belts are elastomeric belts for power transmission applications.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have the best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic
and rubber.
